Detail produk:

Place of Origin: China
Nama merek: MCD
Sertifikasi: ISO , CE

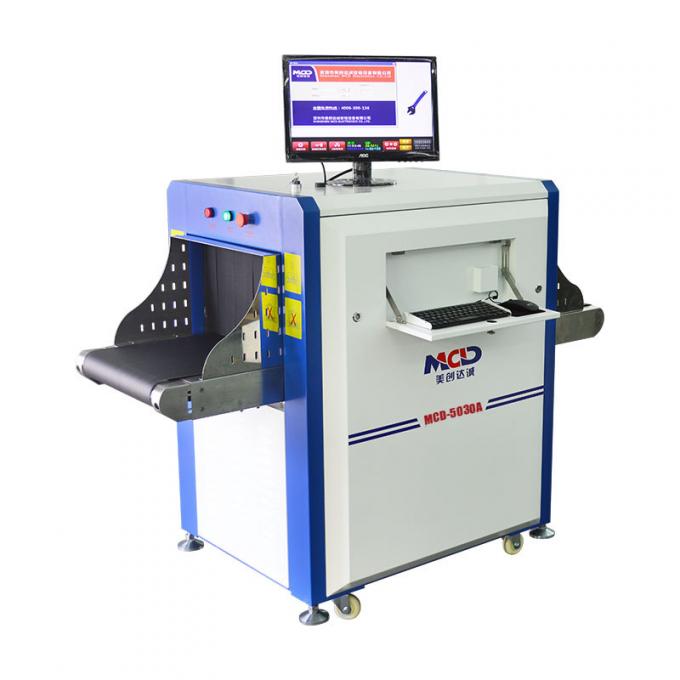

Model Number: MCD-5030A

Syarat-syarat pembayaran & pengiriman:

Minimum Order Quantity: 1 set
Harga: Negotiable
Packaging Details: wooden
Delivery Time: Normally within 5 working days
Payment Terms: T/T , Western Union , L/C
Supply Ability: 50sets / month
Detil Deskripsi produk
Tunnel Size:: 500(W)*300(H)mm Conveyor Speed:: 0.22m/s
Conveyor Max Load:: 170kg Dose per Inspection:: <2.9uGy/h
Resolution:: <0.101mmMetal Wire Color display:: less than 4 color
Generate angle:: 80 degree Operating Temperature/Humidity:: 0℃~45℃/20%-95%(non-condensing)
Operation Power:: 220AVC/(±10)50Hz±3Hz Anode Voltage:: 80Kv

Multi Language 0.22m /s X Ray Airport Security Detector Machine 50*30cm

Multi Language 0.22m /s X Ray Airport Security Detector Machine 50*30cm



Product Parameters:





X-ray Generator


  • 1. Generate direct: Upward
  • 2. Generate angle: 80 degree
  • 3. Anode Voltage: 80Kv
  • 4. Anode power: 0.4 to 0.5mA
  • 5. Cooling / Duty Cycle: Oil Cooling /100%



General Specification

  • 1. Tunnel Size: 500(W)*300(H)mm
  • 2. Conveyor Speed: 0.22m/s
  • 3. Conveyor Max Load: 170kg
  • 4. Dose per Inspection: <2.9 uGy/h
  • 5. Resolution: <0.101mmMetal Wire
  • 6. Spatial resolution Level:diaφ1.0mm , Vertical:diaφ1.0mm
  • 7. Through resolution:φ0.202mm
  • 8. Penetration: 10mm Steel
  • 9. Film Safety: Guarantee ISO1600 Film
  • 10 X-ray Leakage: <0.05 uGy/h (at a distance of 5cmFrom external housing)

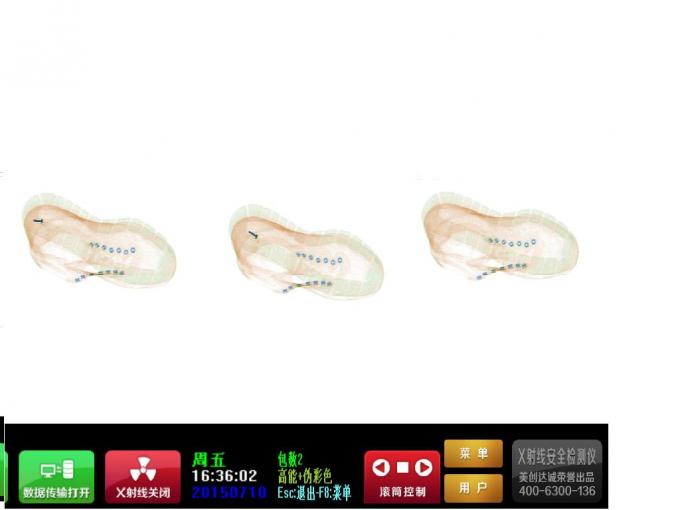

Image System


  • 1. X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
  • 2. Monitor: High Resolution Color, LCD Accord, 17 inch
  • 3. Detector:1
  • 4. Color display:less than 4 color
  • 5. mage Processing: Edge enhancement, image strengthening,
  •     Image lightening, reducing darkening, image returning, image retrieval.
  • 6. Image Grey Level: 4096
  • 7. Image Max Resolution: 1024 * 1280 pixel
  • 8. Image Processing: 24bit for processing real time
  • 9. Image storage: Storage 60000 pictures in real time
  • 10. Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge,
  •       Whole screen continuous observation
  • 11. Multi-energetic distinguish objects: organic objects in orange,
  •       inorganic objects in blue,mixture in green



Installation Data

  • 1. Operating Temperature/Humidity: 0℃~45℃/20%-95%(non-condensing)
  • 2. Storage Temperature/Humidity: -20℃~60℃/20%-95%(non-condensing)
  • 3. Operation Power:220AVC/(±10)50Hz±3Hz
  • 4. Power Consumption:1.0KW(Max),0.3KW(working)
  • 5. Noise: <55 dB



Feature and Application:

X-rays through inspection,Which show object interior metal structure by LCD screen.

Applied to factory inspection products and institutions of the security. Such as electronic factory,

shoe factories, toy factories, court and station, as well as large activities handbag security.
